規格型號：67851305
頻率：25 MHz

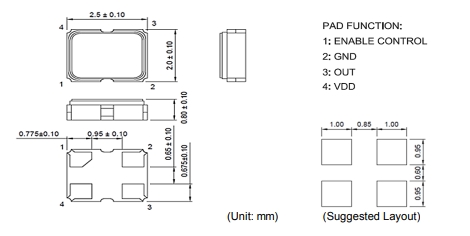

尺寸：2.50mm x 2.00mm
PDF
產品描述：8WE-25.000MDM-T,顯示屏設備晶振,2520貼片晶振,無論顯示屏尺寸,分辨率,應用場景如何變化,其穩定的25.000MHz頻率輸出都能精準匹配不同驅動芯片的時鐘需求,助力顯示屏設備實現多樣化功能與穩定性能.

8WE-25.000MDM-T,顯示屏設備晶振,2520貼片晶振
8WE-25.000MDM-T是專為顯示屏設備量身研發的核心時鐘組件,其輸出頻率精準鎖定在25.000MHz,完全符合顯示屏信號傳輸對時鐘精度的嚴苛標準.在實際應用中,它能為液晶顯示器(LCD)的T-Con板,OLED顯示屏的驅動IC提供穩定的時鐘基準,精準同步像素點的開關時序與數據傳輸節奏,從根源上避免因時鐘信號波動導致的畫面卡頓,拖影,色彩失真等問題.無論是消費級設備中4K/8K高清電視的高速畫面刷新,還是工業設備晶振中精密儀器顯示屏的實時數據顯示,該晶振都能保障顯示屏持續流暢運行,是連接"信號處理"與"畫面呈現"的關鍵橋梁,廣泛適配消費級與工業級顯示屏的時鐘需求.

8WE-25.000MDM-T,顯示屏設備晶振,2520貼片晶振

原廠型號 Originalmodel：	8WE-25.000MDM-T	品牌brand：	TXC
Manufacturer品牌	TXC	OperatingTemperature溫度	-40°C ~ 125°C
Series型號	8WE	Current-Supply(Max)	-
Type類型	XO	PackageHeight高度	0.90mm
Frequency頻率	25 MHz	Termination 腳位	4 pad
輸出方式 Output：	CMOS輸出晶振	PackageType 封裝類型	4-SMD
Voltage-Supply電壓	1.8V	Packaging 包裝	TapeandReel
FrequencyStability頻率穩定度	±50ppm	安裝方式 Installation：	Surfacemount
Size/Dimension尺寸	2.50mm x 2.00mm	最小包裝數MPQ：	3000

8WE-25.000MDM-T,顯示屏設備晶振,2520貼片晶振

7XZ-32.768KBE-T	TXC CORPORATION	7XZ	XO (Standard)	32.768 kHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
7Z-38.400MBG-T	TXC CORPORATION	7Z	TCXO	38.4 MHz	Clipped Sine Wave	3.3V	±500ppb	-30°C ~ 85°C
7Z-26.000MBG-T	TXC CORPORATION	7Z	TCXO	26 MHz	Clipped Sine Wave	3.3V	±500ppb	-30°C ~ 85°C
CX-100.000MBE-T	TXC CORPORATION	CX	XO (Standard)	100 MHz	HCSL	3.3V	±50ppm	-40°C ~ 85°C
7X-50.000MBE-T	TXC CORPORATION	7X	XO (Standard)	50 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
7C-25.000MBE-T	TXC CORPORATION	7C	XO (Standard)	25 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
7C-40.000MBE-T	TXC CORPORATION	7C	XO (Standard)	40 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
8W-24.000MBE-T	TXC CORPORATION	8W	XO (Standard)	24 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
7C-25.000MCB-T	TXC CORPORATION	7C	XO (Standard)	25 MHz	CMOS	2.5V	±50ppm	-10°C ~ 70°C
7C-26.000MBB-T	TXC CORPORATION	7C	XO (Standard)	26 MHz	CMOS	3.3V	±50ppm	-10°C ~ 70°C
7C-28.63636MBB-T	TXC CORPORATION	7C	XO (Standard)	28.63636 MHz	CMOS	3.3V	±50ppm	-10°C ~ 70°C
7X-19.200MBA-T	TXC CORPORATION	7X	XO (Standard)	19.2 MHz	CMOS	3.3V	±25ppm	-10°C ~ 70°C
8WE-33.333MBM-T	TXC CORPORATION	8WE	XO (Standard)	33.333 MHz	CMOS (Low EMI)	3.3V	±50ppm	-40°C ~ 125°C
7X-26.000MBA-T	TXC CORPORATION	7X	XO (Standard)	26 MHz	CMOS	3.3V	±25ppm	-10°C ~ 70°C
8WE-24.000MDM-T	TXC CORPORATION	8WE	XO (Standard)	24 MHz	CMOS (Low EMI)	1.8V	±50ppm	-40°C ~ 125°C
7X-26.000MBB-T	TXC CORPORATION	7X	XO (Standard)	26 MHz	CMOS	3.3V	±50ppm	-10°C ~ 70°C
7X-48.000MBB-T	TXC CORPORATION	7X	XO (Standard)	48 MHz	CMOS	3.3V	±50ppm	-10°C ~ 70°C
AU-12.288MBE-T	TXC CORPORATION	AU	XO (Standard)	12.288 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
AU-24.000MBE-T	TXC CORPORATION	AU	XO (Standard)	24 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
AU-50.000MBE-T	TXC CORPORATION	AU	XO (Standard)	50 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
7C-26.000MBA-T	TXC CORPORATION	7C	XO (Standard)	26 MHz	CMOS	3.3V	±25ppm	-10°C ~ 70°C
7C-25.000MBA-T	TXC CORPORATION	7C	XO (Standard)	25 MHz	CMOS	3.3V	±25ppm	-10°C ~ 70°C
BX-100.000MBE-T	TXC CORPORATION	BX	XO (Standard)	100 MHz	HCSL	3.3V	±50ppm	-40°C ~ 85°C
7N-20.000MBP-T	TXC CORPORATION	7N	TCXO	20 MHz	CMOS	3.3V	±280ppb	-40°C ~ 85°C
7N-12.800MBP-T	TXC CORPORATION	7N	TCXO	12.8 MHz	CMOS	3.3V	±280ppb	-40°C ~ 85°C
7X-25.000MBE-T	TXC CORPORATION	7X	XO (Standard)	25 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
7C-4.000MBB-T	TXC CORPORATION	7C	XO (Standard)	4 MHz	CMOS	3.3V	±50ppm	-10°C ~ 70°C
8WE-25.000MDM-T	TXC CORPORATION	8WE	XO (Standard)	25 MHz	CMOS (Low EMI)	1.8V	±50ppm	-40°C ~ 125°C
8WE-38.400MDM-T	TXC CORPORATION	8WE	XO (Standard)	38.4 MHz	CMOS (Low EMI)	1.8V	±50ppm	-40°C ~ 125°C
8NE-25.000MBM-T	TXC CORPORATION	8NE	XO (Standard)	25 MHz	CMOS (Low EMI)	3.3V	±50ppm	-40°C ~ 125°C
8WE-24.000MBM-T	TXC CORPORATION	8WE	XO (Standard)	24 MHz	CMOS (Low EMI)	3.3V	±50ppm	-40°C ~ 125°C
AU-25.000MBE-T	TXC CORPORATION	AU	XO (Standard)	25 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
AU-26.000MBE-T	TXC CORPORATION	AU	XO (Standard)	26 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
7Z-26.000MDS-T	TXC CORPORATION	7Z	VCTCXO	26 MHz	Clipped Sine Wave	1.8V	±2ppm	-30°C ~ 85°C
7Z-26.000MDG-T	TXC CORPORATION	7Z	TCXO	26 MHz	Clipped Sine Wave	1.8V	±500ppb	-30°C ~ 85°C
BR-61.4400MBE-T	TXC CORPORATION	BR	VCXO	61.44 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
8WE-33.333MDM-T	TXC CORPORATION	8WE	XO (Standard)	33.333 MHz	CMOS (Low EMI)	1.8V	±50ppm	-40°C ~ 125°C
8NE-24.576MDM-T	TXC CORPORATION	8NE	XO (Standard)	24.576 MHz	CMOS (Low EMI)	1.8V	±50ppm	-40°C ~ 125°C
8WE-30.000MBM-T	TXC CORPORATION	8WE	XO (Standard)	30 MHz	CMOS (Low EMI)	3.3V	±50ppm	-40°C ~ 125°C
8NE-24.000MBM-T	TXC CORPORATION	8NE	XO (Standard)	24 MHz	CMOS (Low EMI)	3.3V	±50ppm	-40°C ~ 125°C
8WE-27.000MDM-T	TXC CORPORATION	8WE	XO (Standard)	27 MHz	CMOS (Low EMI)	1.8V	±50ppm	-40°C ~ 125°C
TD-7.3728MBD-T	TXC CORPORATION	TD	XO (Standard)	7.3728 MHz	CMOS	3.3V	±25ppm	-40°C ~ 85°C
7XZ-32.768KBA-T	TXC CORPORATION	7XZ	XO (Standard)	32.768 kHz	CMOS	3.3V	±25ppm	-10°C ~ 70°C
7XZ-32.768KDA-T	TXC CORPORATION	7XZ	XO (Standard)	32.768 kHz	CMOS	1.8V	±25ppm	-10°C ~ 70°C
7W-36.000MBB-T	TXC CORPORATION	7W	XO (Standard)	36 MHz	CMOS	3.3V	±50ppm	-10°C ~ 70°C
8NE-25.000MDM-T	TXC CORPORATION	8NE	XO (Standard)	25 MHz	CMOS (Low EMI)	1.8V	±50ppm	-40°C ~ 125°C
7X-38.400MBE-T	TXC CORPORATION	7X	XO (Standard)	38.4 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
7W-10.000MBE-T	TXC CORPORATION	7W	XO (Standard)	10 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
7X-30.000MBE-T	TXC CORPORATION	7X	XO (Standard)	30 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
7X-26.000MBE-T	TXC CORPORATION	7X	XO (Standard)	26 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
7C-50.000MBE-T	TXC CORPORATION	7C	XO (Standard)	50 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
8W-26.000MBE-T	TXC CORPORATION	8W	XO (Standard)	26 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
8W-13.000MBE-T	TXC CORPORATION	8W	XO (Standard)	13 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
7X-30.000MBB-T	TXC CORPORATION	7X	XO (Standard)	30 MHz	CMOS	3.3V	±50ppm	-10°C ~ 70°C
8W-20.000MBE-T	TXC CORPORATION	8W	XO (Standard)	20 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
7C-40.000MCB-T	TXC CORPORATION	7C	XO (Standard)	40 MHz	CMOS	2.5V	±50ppm	-10°C ~ 70°C
7C-24.576MBA-T	TXC CORPORATION	7C	XO (Standard)	24.576 MHz	CMOS	3.3V	±25ppm	-10°C ~ 70°C
8NE-24.576MBM-T	TXC CORPORATION	8NE	XO (Standard)	24.576 MHz	CMOS (Low EMI)	3.3V	±50ppm	-40°C ~ 125°C
8WE-20.000MBM-T	TXC CORPORATION	8WE	XO (Standard)	20 MHz	CMOS (Low EMI)	3.3V	±50ppm	-40°C ~ 125°C
8NE-27.000MBM-T	TXC CORPORATION	8NE	XO (Standard)	27 MHz	CMOS (Low EMI)	3.3V	±50ppm	-40°C ~ 125°C
