規格型號：83112229
頻率：32.768kHz
尺寸：3.2 x 1.5 mm
PDF
產品描述：X1A0001410000100,FC-135R可穿戴產品晶振,低功耗應用晶振,廣泛適用于智能眼鏡,健康監測手環,運動手表等各類可穿戴設備,是提升產品用戶體驗的關鍵核心元件.

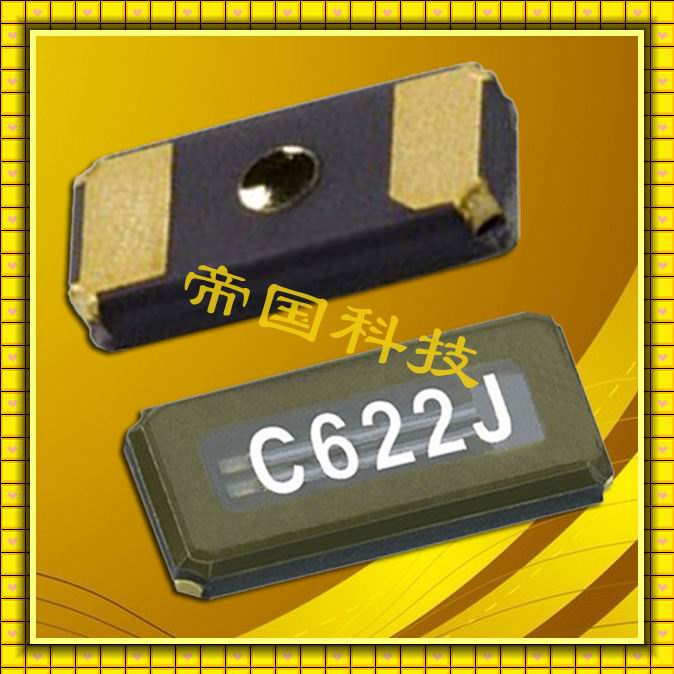

X1A0001410000100,FC-135R可穿戴產品晶振,低功耗應用晶振

X1A0001410000100(FC-135R晶振)專為低功耗可穿戴場景定制,是智能手表,健康手環,運動追蹤器等設備的理想時鐘解決方案.依托愛普生先進石英晶體技術,采用切型設計,兼具低功耗與高穩定性雙重優勢,工作功耗遠低于傳統晶振,可助力設備實現一次充電長效使用.產品具備500MΩ高絕緣電阻,抗干擾能力優異,能有效抵御可穿戴設備內部電磁信號干擾,輸出純凈正弦波形.其工業級品質保障在復雜環境下的可靠運行,從日常通勤到極端溫差環境,均能穩定輸出時序信號,為設備的計時精準性與功能穩定性保駕護航.

X1A0001410000100,FC-135R可穿戴產品晶振,低功耗應用晶振

原廠型號 Originalmodel：	X1A0001410000100	品牌brand：	EPSON
品牌brand：	EPSON低功耗藍牙模塊晶振	高度PackageHeight：	0.8mm
型號名稱 Modelname：	FC-135R	溫度OperatingTemperature	-40+85℃
Type系列：	KHz Crystal	腳位Termination：	2-Pad
頻率 frequency：	32.768K	封裝類型PackageType：	2-Smd
frequencytolerance頻率容差	±20ppm	最小包裝數MPQ：	3000
Loadcapacitance 負載電容	7PF	Packaging 包裝	TapeandReel

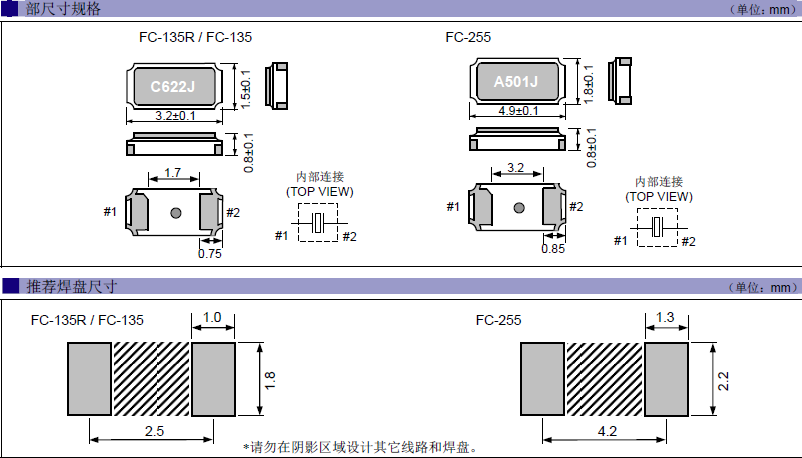

Size/Dimension尺寸	3215mm	安裝方式 Installation：	Surfacemount

X1A0001410000100,FC-135R可穿戴產品晶振,低功耗應用晶振

X1A0001410000100,FC-135R可穿戴產品晶振,低功耗應用晶振
