- 規格型號：52618893
- 頻率：20.48MHz
- 尺寸：11.05X4.7MM
- 產品描述：LFXTAL015949Bulk,HC49/4H石英插件晶振,計算機應用晶振,HC49/4H封裝的堅固結構與良好的抗振動性能,能抵御工業環境中的振動干擾,延長工業計算機的使用壽命,保障工業生產過程中數據處理與控制的穩定運行.
LFXTAL015949Bulk,HC49/4H石英插件晶振,計算機應用晶振
.png)
.png)

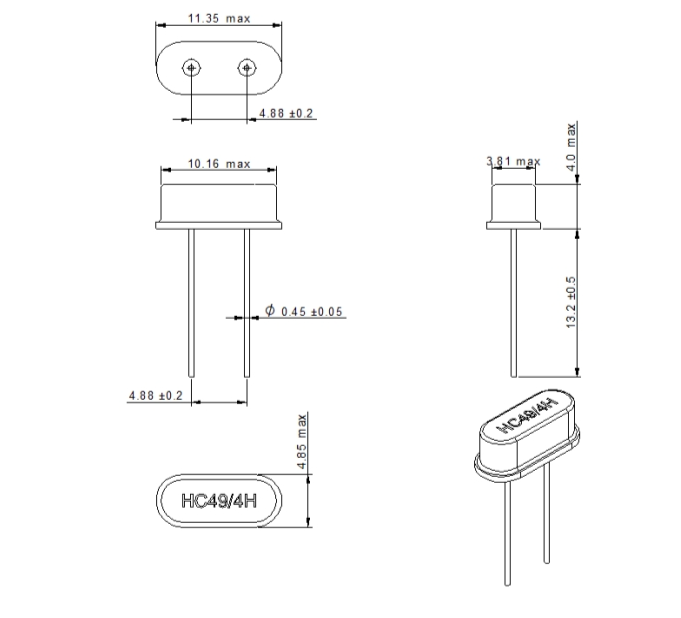

LFXTAL015949Bulk,HC49/4H石英插件晶振,計算機應用晶振
LFXTAL015949BulkHC49/4H石英插件晶振是計算機主板的"時鐘心臟",為CPU,內存,芯片組等核心部件提供精準穩定的時鐘信號.其采用高精度石英材質,在計算機長時間高負載運行時,能始終保持頻率輸出的一致性,避免因時鐘信號波動導致的CPU運算出錯,內存讀寫延遲等問題.HC49/4H插件封裝適配主流主板的電路設計,安裝便捷且接觸穩定,確保主板各部件協同工作,為計算機高效運行奠定堅實的時鐘基礎..png)
LFXTAL015949Bulk,HC49/4H石英插件晶振,計算機應用晶振
| 原廠型號 Originalmodel： | LFXTAL015949Bulk | 品牌brand： | IQD晶振 |
| 品牌brand： | IQD晶振 | ESR（等效串聯電阻）Resistance) | - |
| 型號名稱 Modelname： | HC49/4H | 溫度OperatingTemperature | -10°C to 60°C |
| Type系列： | MHz Crystal | 腳位Termination： | 2pad |
| 頻率 frequency： | 20.48MHz | 封裝類型PackageType： | 4-soj |
| FrequencyStability頻率穩定度 | ±30ppm | 高度PackageHeight： | 4.1mm |
| frequencytolerance頻率容差 | ±20ppm | 最小包裝數MPQ： | - |
| Loadcapacitance 負載電容 | 30.00pF | 包裝Packaging： | TapeandReel |
| Size/Dimension尺寸 | 11.05x4.7mm | 安裝方式MountingStyle： | SurfaceMount |
.png)
LFXTAL015949Bulk,HC49/4H石英插件晶振,計算機應用晶振
LFXTAL015949Bulk,HC49/4H石英插件晶振,計算機應用晶振
| LFXTAL081314Reel | IQXC-240 | 37.4MHz | ±7ppm | ±15ppm | -30°C to 85°C | 5.00pF |
| LFXTAL081316Reel | IQXC-240 | 38.4MHz | ±7ppm | ±15ppm | -30°C to 85°C | 5.00pF |
| LFXTAL072539Reel | IQXC-26 | 24.0MHz | ±15ppm | ±15ppm | -20°C to 70°C | 8.00pF |
| LFXTAL078691Cutt | IQXC-26 | 24.0MHz | ±10ppm | ±30ppm | -40°C to 85°C | 20.00pF |
| LFXTAL081608Cutt | IQXC-26 | 24.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL081608Reel | IQXC-26 | 24.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL081609Cutt | IQXC-26 | 25.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL083890Cutt | IQXC-26 | 25.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 20.00pF |
| LFXTAL052799Cutt | IQXC-26 | 26.0MHz | ±10ppm | ±30ppm | -40°C to 85°C | 10.00pF |
| LFXTAL066742Cutt | IQXC-26 | 26.0MHz | ±15ppm | ±15ppm | -20°C to 70°C | 8.00pF |
| LFXTAL066742Reel | IQXC-26 | 26.0MHz | ±15ppm | ±15ppm | -20°C to 70°C | 8.00pF |
| LFXTAL069296Cutt | IQXC-26 | 26.0MHz | ±15ppm | ±20ppm | -20°C to 70°C | 8.00pF |
| LFXTAL070729Cutt | IQXC-26 | 26.0MHz | ±10ppm | ±15ppm | -20°C to 70°C | 12.00pF |
| LFXTAL081614Cutt | IQXC-26 | 26.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL081614Reel | IQXC-26 | 26.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL072541Cutt | IQXC-26 | 27.0MHz | ±15ppm | ±15ppm | -20°C to 70°C | 8.00pF |
| LFXTAL072541Reel | IQXC-26 | 27.0MHz | ±15ppm | ±15ppm | -20°C to 70°C | 8.00pF |
| LFXTAL081610Cutt | IQXC-26 | 27.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL072302Cutt | IQXC-26 | 30.0MHz | ±15ppm | ±15ppm | 20°C to 70°C | 8.00pF |
| LFXTAL081612Cutt | IQXC-26 | 30.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL056523Cutt | IQXC-26 | 32.0MHz | ±20ppm | ±20ppm | -20°C to 70°C | 8.00pF |
| LFXTAL056523Reel | IQXC-26 | 32.0MHz | ±20ppm | ±20ppm | -20°C to 70°C | 8.00pF |
| LFXTAL069526Cutt | IQXC-26 | 32.0MHz | ±15ppm | ±15ppm | -20°C to 70°C | 8.00pF |
| LFXTAL069526Reel | IQXC-26 | 32.0MHz | ±15ppm | ±15ppm | -20°C to 70°C | 8.00pF |
| LFXTAL079322Cutt | IQXC-26 | 32.0MHz | ±10ppm | ±20ppm | -20°C to 70°C | 12.00pF |
| LFXTAL079322Reel | IQXC-26 | 32.0MHz | ±10ppm | ±20ppm | -20°C to 70°C | 12.00pF |
| LFXTAL081613Cutt | IQXC-26 | 32.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL083149Reel | IQXC-26 | 32.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 6.00pF |
| LFXTAL072304Cutt | IQXC-26 | 37.4MHz | ±15ppm | ±15ppm | 20°C to 70°C | 8.00pF |
| LFXTAL081616Cutt | IQXC-26 | 37.4MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL063312Cutt | IQXC-26 | 40.0MHz | ±30ppm | ±30ppm | -40°C to 85°C | 16.00pF |
| LFXTAL069527Cutt | IQXC-26 | 40.0MHz | ±15ppm | ±15ppm | -20°C to 70°C | 8.00pF |
| LFXTAL069527Reel | IQXC-26 | 40.0MHz | ±15ppm | ±15ppm | -20°C to 70°C | 8.00pF |
| LFXTAL081619Cutt | IQXC-26 | 40.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL069528Cutt | IQXC-26 | 48.0MHz | ±15ppm | ±15ppm | -20°C to 70°C | 8.00pF |
| LFXTAL069528Reel | IQXC-26 | 48.0MHz | ±15ppm | ±15ppm | -20°C to 70°C | 8.00pF |
| LFXTAL081620Cutt | IQXC-26 | 48.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL078795Cutt | IQXC-42 | 16.0MHz | ±15ppm | ±50ppm | -40°C to 85°C | 8.00pF |
| LFXTAL081780RL3K | IQXC-42 | 16.0MHz | ±10ppm | ±20ppm | -30°C to 85°C | 8.00pF |
| LFXTAL081781RL3K | IQXC-42 | 16.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL081821Cutt | IQXC-42 | 16.0MHz | ±10ppm | ±15ppm | -30°C to 85°C | 12.00pF |
| LFXTAL082887RL3K | IQXC-42 | 16.0MHz | ±10ppm | ±30ppm | -40°C to 105°C | 10.00pF |
| LFXTAL059585Cutt | IQXC-42 | 20.0MHz | ±15ppm | ±20ppm | -40°C to 85°C | 10.00pF |
| LFXTAL059585Reel | IQXC-42 | 20.0MHz | ±15ppm | ±20ppm | -40°C to 85°C | 10.00pF |
| LFXTAL059585RL3K | IQXC-42 | 20.0MHz | ±15ppm | ±20ppm | -40°C to 85°C | 10.00pF |
| LFXTAL064174RL3K | IQXC-42 | 24.0MHz | ±30ppm | ±30ppm | -40°C to 85°C | 12.00pF |
| LFXTAL066139Cutt | IQXC-42 | 24.0MHz | ±20ppm | ±20ppm | -40°C to 85°C | 10.00pF |
| LFXTAL069476RL3K | IQXC-42 | 24.0MHz | ±10ppm | ±10ppm | -20°C to 75°C | 12.00pF |
| LFXTAL069493Cutt | IQXC-42 | 24.0MHz | ±15ppm | ±20ppm | -40°C to 85°C | 10.00pF |
| LFXTAL069493Reel | IQXC-42 | 24.0MHz | ±15ppm | ±20ppm | -40°C to 85°C | 10.00pF |
| LFXTAL069493RL3K | IQXC-42 | 24.0MHz | ±15ppm | ±20ppm | -40°C to 85°C | 10.00pF |
| LFXTAL072577RL3K | IQXC-42 | 24.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 18.00pF |
| LFXTAL076411Cutt | IQXC-42 | 24.0MHz | ±10ppm | ±10ppm | -20°C to 70°C | 10.00pF |
| LFXTAL076411RL3K | IQXC-42 | 24.0MHz | ±10ppm | ±10ppm | -20°C to 70°C | 10.00pF |
| LFXTAL081531RL3K | IQXC-42 | 24.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL081646RL3K | IQXC-42 | 24.0MHz | ±15ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL082123Cutt | IQXC-42 | 24.0MHz | ±10ppm | ±15ppm | -40°C to 85°C | 8.00pF |
| LFXTAL082123RL3K | IQXC-42 | 24.0MHz | ±10ppm | ±15ppm | -40°C to 85°C | 8.00pF |
| LFXTAL090516RL3K | IQXC-42 | 24.0MHz | ±50ppm | ±50ppm | -40°C to 85°C | 12.00pF |
| LFXTAL054026Cutt | IQXC-42 | 25.0MHz | ±25ppm | ±30ppm | -40°C to 85°C | 18.00pF |
